7/8 " JIC M X 1/2 " JIC M 90 DEG SWVL 5000 PSI STL
Description

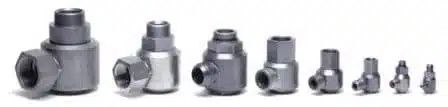

Reduce hose twisting and simplify hydraulic hose routing with the Hydraulics Inc 9S 90° hydraulic swivel with 7/8" JIC Male and 1/2" NPT Male connections. Its elbow configuration accommodates relative rotation while providing a compact change of direction. Maximum working pressure: 5,000 psi.
Product Summary
| Part Number | 9S8J10-P8 |
|---|---|
| Product Type | Hydraulic Swivel |
| Series | 9S 90° |
| Configuration | 90° |
| End A | 7/8" JIC Male |
| End B | 1/2" NPT Male |
| Material | Steel |
| Maximum Working Pressure | 5,000 psi |
Product Details
The pressure-balanced 9S design helps maintain low rotational torque as system pressure changes. By allowing the hose to follow equipment movement, the swivel helps reduce torsional strain and supports practical routing around moving components.
- Pressure balancing helps the connection turn with low torque.
- Protected dust seals help shield the sealing area from contamination.
- Replaceable seals support maintenance of compatible assemblies.
- The current cast-barrel design removes the brazed joint from the barrel.
Note: Confirm dimensions, connections, sealing method and fluid compatibility before ordering. Use within the rating of the lowest-rated system component. Rotation speed and external loading must suit the application.
